Lead Carbon Batteries, Zinc carbon batteries, Solar carbon batteries

Carbon Batteries

Our carbon batteries, often referred to as zinc-carbon batteries, are extensively utilized in household electronics. Employing a carbon rod as the positive electrode and zinc as the negative electrode, these batteries are both economical and prevalent in low-drain devices such as remote controls and flashlights.

Despite having a lower energy density compared to alkaline batteries, our carbon batteries continue to be a preferred option for applications with moderate power demands due to their cost-effectiveness.



Available Models

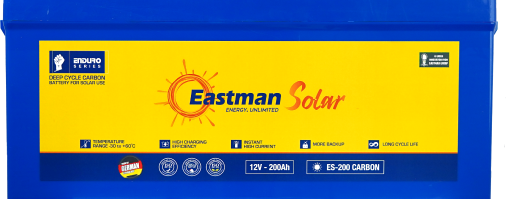

Carbon 200

Reliable Power, Long-lasting Performance - 200Ah 12V Battery

Meet your energy needs with our 200Ah 12V battery. With a design life of 15 years, M8 terminals, and an approximate weight of 64.0kg, it's the ideal choice for sustained and dependable power. Trust in quality and durability for your energy solutions.

Description200230
Nominal Voltage12V12V
Nominal Capacity200Ah230Ah
Design Life15 years15 years
TerminalM8M8
Approx WeightApprox 64.0kg (141 lbs)Approx 71.0kg (157 lbs)
Dimensions
(L*W*H)
520*268*220 (mm)520*268*220 (mm)
Container MaterialABSABS
Rated Capacity200AH 10Hour Rate (22.0A to 10.8V)230AH 10Hour Rate (25.0A to 10.8V)
Pulse Current2200A(5S)3000A(5S)
Operating TemperatureDischarge:- -20~60 C(-4~140 F)Discharge: -20~60°C(-4~140°F)
Cycle Life2800 cycles @ 50% DOD.2800 cycles @ 50% DOD.
Charge CurrentMax. 55A; Recom. 40AMax. 75A; Recom. 50A
Charge Method (25°C)Float Charge: 13.5-13.8V, recom.13.5V (-18m V/ C)Float Charge:13.5-13.8V, recom.13.5V(-18mV/°C)
Available MarketAF, ME, CIS, LATAM

Product Features

  • Lead-carbon composite negative plate, both capacitance and battery characteristics
  • Long cycle life, excellent deep cycle discharge ability
  • Excellent charge acceptance ability
  • Optimized capability of instant high-current discharging
  • Strong high and low temperature performance
  • Precision sealing technology

Datasheet

Download

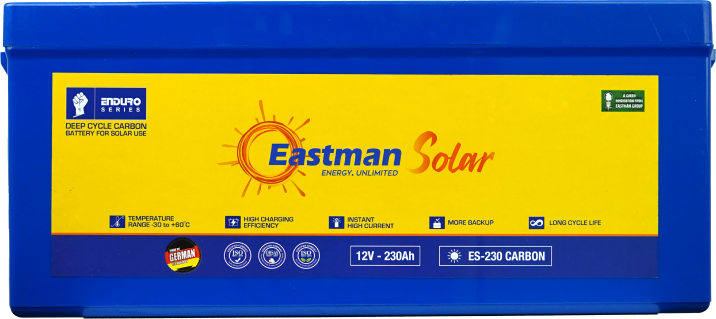

Carbon 230

Power Up Your Energy Reserves - 230Ah 12V Battery

Unleash the potential of our 230Ah 12V battery, designed for a 15-year lifespan. Featuring M8 terminals, ABS container material, and a weight of approximately 71.0kg, this battery is your reliable source for long-lasting and efficient power.

Description200230
Nominal Voltage12V12V
Nominal Capacity200Ah230Ah
Design Life15 years15 years
TerminalM8M8
Approx WeightApprox 64.0kg (141 lbs)Approx 71.0kg (157 lbs)
Dimensions
(L*W*H)
520*268*220 (mm)520*268*220 (mm)
Container MaterialABSABS
Rated Capacity200AH 10Hour Rate (22.0A to 10.8V)230AH 10Hour Rate (25.0A to 10.8V)
Pulse Current2200A(5S)3000A(5S)
Operating TemperatureDischarge:- -20-60 C(-4~140° F)Discharge: -20~60°C(-4~140°F)
Cycle Life2800 cycles @ 50% DOD.2800 cycles @ 50% DOD.
Charge CurrentMax. 55A; Recom. 40AMax. 75A; Recom. 50A
Charge Method (25°C)Float Charge: 13.5-13.8V, recom.13.5V (-18m V/ C)Float Charge:13.5-13.8V, recom.13.5V(-18mV/°C)
Available MarketAF, ME, CIS, LATAM

Product Features

  • Lead-carbon composite negative plate, both capacitance and battery characteristics
  • Long cycle life, excellent deep cycle discharge ability
  • Excellent charge acceptance ability
  • Optimized capability of instant high-current discharging
  • Strong high and low temperature performance
  • Precision sealing technology

Datasheet

Download

Applications

Carbon batteries are widely used as backup power sources in emergency lighting systems and automotive accessories, ensuring consistent functionality across diverse applications.
