Rack Type Energy Storage System for home

Rack Type Energy Storage

Our Rack type Energy Storage system stands as a pinnacle of innovation, characterized by a standardized design implemented in both 3U and 4U cases, ensuring versatile applicability across diverse settings. With an enhanced energy capacity, it accommodates multiple parallel battery configurations, adept at meeting high-energy demands in various applications.

Furthermore, the inclusion of advanced warning functions, such as alerts for overcharge, over-discharge, over-current, high-temperature, and low-temperature scenarios, significantly mitigates potential safety risks. Our Rack type Energy Storage system is designed to offer a reliable, intelligent, and secure solution for diverse energy storage needs, promising efficiency and safety in every application.



Available Models

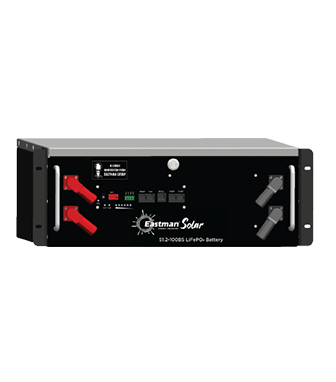

ES51.2V 100 AH

Power meets precision with our ES51.2V 100AH LiFePO4 Battery

Compact yet robust, it offers 5.0 KWh of energy, equipped with advanced safety features and RS485/CAN communication for seamless integration. Ideal for various applications, this energy powerhouse ensures reliability with a cycle life exceeding 6000 times at 80% DOD. Charge up your world with efficiency, safety, and innovation.

DescriptionParameters
ModelES51.2V 100AHES51.2V 400AH
Array Mode16S16S X 4(Module)
Nominal Energy (Kwh)5.020.0
Nominal Voltage (V)51.251.2
Charge Voltage (V)58.458.4
Discharge Cut-off Voltage (V)4242
Standard Charging Current(A)2020X4
Max. Continuous Charging Current (A)100100X4
Max. Continuous Discharging Current (A)100100X4
Cycle Life>>6000Times@80% DOD, 25°C>>6000Times@80% DOD, 25°C
Communication ModeRS485/CANRS485/CAN
Operating TempCharging: 0~60°C; Discharging: -10°C~65°CCharging: 0~60°C; Discharging: -10°C~65°C
Size(LxWxH) mm520X495X175600X600X1000(With Cabinet)
Net Weight (Kg)~43~200
Package Size (LXWXH) mm550X520X230620X620X1040(With Battery Pack)
Gross Weight (Kg)~45~210
Available MarketAF, ME, CIS, LATAM

Product Features

  • Standardized Design: Our 3U and 4U standardized case ensures broad applicability.
  • Enhanced Energy Capacity: Support multiple parallel battery usage to meet high energy demands.
  • Intelligent Lithium Battery Management System: Equipped with RS485 communication, offers real-time battery monitoring and customizable protection parameters such as charge & discharge.
  • Balancing: Automatic collection of battery single series voltage, pressure difference up to 30Mega Volt (can be set) with an automatic start equalization function
  • Warning Function: Advanced warning functions, including overcharge, over-discharge, over-current, high-temperature, and low-temperature alerts, reducing potential safety risks.

Datasheet

Download

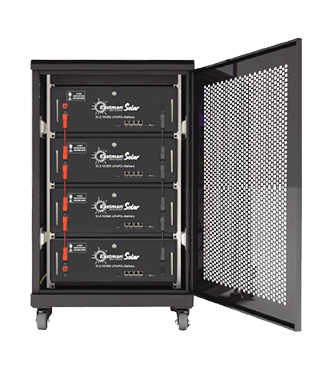

ES51.2V 400AH

Unleash unparalleled energy with our ES51.2V 400AH LiFePO4 Battery

With an impressive 20.0 KWh energy capacity and a robust 16S X 4 array mode, this battery caters to high-energy demands. Advanced safety features, RS485/CAN communication, and a cycle life exceeding 6000 times at 80% DOD ensure reliability and longevity. Size up your power needs with this powerhouse, setting new standards in energy storage.

DescriptionParameters
ModelES51.2V 100AHES51.2V 400AH
Array Mode16S16S X 4(Module)
Nominal Energy (Kwh)5.020.0
Nominal Voltage (V)51.251.2
Charge Voltage (V)58.458.4
Discharge Cut-off Voltage (V)4242
Standard Charging Current(A)2020X4
Max. Continuous Charging Current (A)100100X4
Max. Continuous Discharging Current (A)100100X4
Cycle Life>>6000Times@80% DOD, 25°C>>6000Times@80% DOD, 25°C
Communication ModeRS485/CANRS485/CAN
Operating TempCharging: 0~60°C; Discharging: -10°C~65°CCharging: 0~60°C; Discharging: -10°C~65°C
Size(LxWxH) mm520X495X175600X600X1000(With Cabinet)
Net Weight (Kg)~43~200
Package Size (LXWXH) mm550X520X230620X620X1040(With Battery Pack)
Gross Weight (Kg)~45~210
Available MarketAF, ME, CIS, LATAM

Product Features

  • Standardized Design: Our 3U and 4U standardized case ensures broad applicability.
  • Enhanced Energy Capacity: Support multiple parallel battery usage to meet high energy demands.
  • Intelligent Lithium Battery Management System: Equipped with RS485 communication, offers real-time battery monitoring and customizable protection parameters such as charge & discharge.
  • Balancing: Automatic collection of battery single series voltage, pressure difference up to 30Mega Volt (can be set) with an automatic start equalization function
  • Warning Function: Advanced warning functions, including overcharge, over-discharge, over-current, high-temperature, and low-temperature alerts, reducing potential safety risks.

Datasheet

Download

Applications

The Battery is a compact powerhouse, ideal for diverse applications requiring a reliable and efficient energy source. With its advanced safety features, it seamlessly integrates into portable electronic devices, backup power systems, and renewable energy setups. Its versatility shines in various settings, ensuring a stable power supply for camping equipment, emergency backup, and off-grid solutions.

Related Products

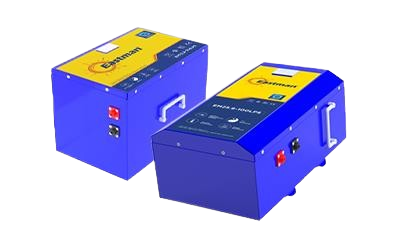

Explore our extensive product lineup, offering a variety of solutions, including Batteries, Portable Power Station and Lead Acid Replacement, all crafted to fulfill your energy storage requirements.
