Our solar charge controllers equipped with advanced MPPT technology for efficient power tracking and enhanced circuit transfer efficiency. Automatic system voltage recognition simplifies installation, while the user-friendly LCD display offers real-time operational insights. With temperature compensation functionality, our controllers ensure reliable performance in any environment.

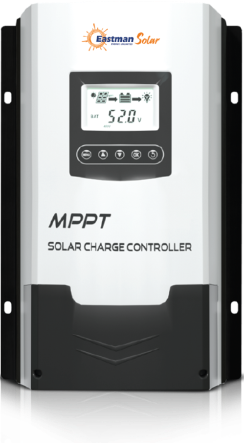

ES-80A

Efficient, Reliable, and Powerful! ES-80A Solar Charge Controller

Offers 80A rated charge current and supports 12/24/48VDC auto-sensing, ensuring seamless integration. With MPPT technology surpassing 99.5% efficiency and a wide battery voltage range, it's an optimal choice for diverse solar setups.

Description	ES-80A	ES-100A
System Voltage	12/24/48VDC Auto	12/24/48VDC Auto
Rated charge current	80A	100A
Battery voltage range	8~68V	8~68V
MPPT voltage range	(Battery voltage +2V)~ 144V	(Battery voltage +2V)~ 144V
Self-consumption	<70mA(12V)/40mA(24V)/24mA(48V	<70mA(12V)/40mA(24V)/24mA(48V
MPPT tracking efficiency	>99.5%	>99.5%
Max. Conversion efficiency	98%	98%
Grounding	Common negative	Common negative
Communication method	RS485	RS485
LCD backlight time	Default: 15S	Default: 15S

Features
Datasheet

Product Features

Advanced MPPT technology, fast and stable track theMaximum Power Point, tracking accuracy 99.00%.
Adopt Synchronous Rectifier Technology, significantlyimprove the transfer efficiency of circuit, maximum 97.00%.
12/24VDC system voltage automatic recognition.
Humanized LCD displaying, dynamic display operation dataand working state
Temperature Compensation Function.

Datasheet

Download

ES-100A

ES-100A Solar Charge Controller: Unleash Maximum Solar Power Potential!

Offers 100A rated charge current and supports 12/24/48VDC auto-sensing, ensuring seamless integration. With MPPT technology exceeding 99.5% efficiency and wide battery voltage range, it's ideal for diverse solar systems, featuring RS485 communication for enhanced monitoring.

Description	ES-80A	ES-100A
System Voltage	12/24/48VDC Auto	12/24/48VDC Auto
Rated charge current	80A	100A
Battery voltage range	8~68V	8~68V
MPPT voltage range	(Battery voltage +2V)~ 144V	(Battery voltage +2V)~ 144V
Self-consumption	<70mA(12V)/40mA(24V)/24mA(48V	<70mA(12V)/40mA(24V)/24mA(48V
MPPT tracking efficiency	>99.5%	>99.5%
Max. Conversion efficiency	98%	98%
Grounding	Common negative	Common negative
Communication method	RS485	RS485
LCD backlight time	Default: 15S	Default: 15S

Features
Datasheet

Product Features

Advanced MPPT technology, fast and stable track theMaximum Power Point, tracking accuracy 99.00%.
Adopt Synchronous Rectifier Technology, significantlyimprove the transfer efficiency of circuit, maximum 97.00%.
12/24VDC system voltage automatic recognition.
Humanized LCD displaying, dynamic display operation dataand working state
Temperature Compensation Function.

Datasheet

Download

Applications

MPPT Solar Charge Controllers are essential in diverse applications, from residential solar setups to remote installations, ensuring efficient energy utilization and performance optimization in a compact and versatile form.
