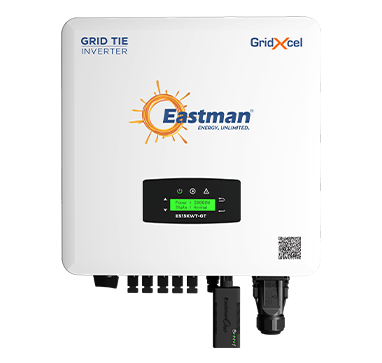

EGT-6K-1P1M

Single Phase Inverters

The Eastman On-Grid PV Inverter Single-phase inverters are designed for residential PV system applications, rating from 3kW to 6kW. All models have unibody housings with aluminum structure which is anodized, increasing durability and effectively prevents corrosion. Equipped with external inductors, the unibody housings can ensure effcient heat dissipation, which significantly improves the reliability and extends the life of the inverters. The inverter menu is activated by sensor touch buttons. Communication implements are via the Wi-Fi module (can be changed to Ethernet / GPRS). Check the system status anytime and anywhere via online portal or APP.



Available Models

EGT-3K-1P1M

Low Voltage Efficient Hybrid Inverter Solution

Eastman Low voltage hybrid inverters, ranging from 3 kW to 6 kW, are designed to optimize energy efficiency by integrating solar power with battery storage systems.

EGT-6K-1P1M
ModelEGT-3K-1P1MEGT-3.6K-1P1MEGT-5K-1P1MEGT-6K-1P1M
Max DC Input Power (kW)3.94.77.59
Max DC Input Voltage550VDC550VDC600VDC600VDC
MPPT Operating Range70-50070-50070-55070-550
Max DC Input Current20202020
Max Short Circuit Current30303030
No of MPP Tracker1111
No. of String per MPP Tracker1112
Start-up Voltage (V)80VDC80VDC80VDC80VDC
Output (AC)
Rated Output Power (kW)33.656
Max Active Power (kW)3.33.965.56.6
Max Apparent Power (kVA)3.33.965.56.6
Rated Output Voltage / Range230VAC / 195.5 to 253 VAC230VAC / 195.5 to 253 VAC230VAC / 195.5 to 253 VAC230VAC / 195.5 to 253 VAC
Rated Grid Frequency / Range50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)
Operating PhaseSingleSingleSingleSingle
Rated AC Grid Output Current13.115.721.826.1
Max AC Output Current14.417.32428.7
Output Power Factor0.8 lag to 0.8 lead0.8 lag to 0.8 lead0.8 lag to 0.8 lead0.8 lag to 0.8 lead
THD Current<3%<3%<3%<3%
Efficiency
Max Efficiency97.50%97.50%97.50%97.50%
MPPT Efficiency>99%>99%>99%>99%
Protection
DC Reverse Polarity ProtectionYesYesYesYes
AC Short Circuit ProtectionYesYesYesYes
AC Output Overcurrent ProtectionYesYesYesYes
Output Overvoltage ProtectionYesYesYesYes
Insulation Resistance ProtectionYesYesYesYes
Ground Fault MonitoringYesYesYesYes
Anti-islanding ProtectionYesYesYesYes
Temperature ProtectionYesYesYesYes
Remote software uploadYesYesYesYes
Remote change of operating ParametersYesYesYesYes
Surge protection levelYesYesYesYes
General Data
Size (mm)280W x 310H x 184D280W x 310H x 184D330W x 323H x 190D330W x 323H x 190D
Weight (Kg)6.356.3588
Ingress ProtectionIP65IP65IP65IP65
Max. Operating Altitude without Derating2000m2000m2000m2000m
Grid Connection StandardIEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5IEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5IEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5IEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5
Operating Surrounding Humidity0-100%0-100%0-100%0-100%
Safety EMC/standardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Communication interfaceRS485/Wi-Fi/LANRS485/Wi-Fi/LANRS485/Wi-Fi/LANRS485/Wi-Fi/LAN
Permissible Altitude2000 m2000 m2000 m2000 m
Noise (dB)35353535
Ingress Protection (IP Rating)IP65IP65IP65IP65
Inverter topologyTransformerlessTransformerlessTransformerlessTransformerless
Overvoltage CategoryOVC II (DC) / OVC III (AC)OVC II (DC) / OVC III (AC)OVC II (DC) / OVC III (AC)OVC II (DC) / OVC III (AC)
Type of CoolingNatural CoolingNatural CoolingNatural CoolingNatural Cooling
Features
DisplayLCD16O2LCD16O2LCD16O2LCD16O2
InterfaceRS48S/Wi-Fi/LANRS48S/Wi-Fi/LANRS48S/Wi-Fi/LANRS48S/Wi-Fi/LAN

Product Features

  • Max. Efficiency 97.5%
  • Low Startup DC voltage
  • Max. DC overloading 30%
  • Wide AC voltage range
  • Type-II SPD Enabled AC and DC Side
  • Eastman Solar App for Remote Monitoring 24x7
  • Built in zero export function
  • IP 65 Enclosure

Datasheet

Download

EGT-3.6K-1P1M

Low Voltage Efficient Hybrid Inverter Solution

Eastman Low voltage hybrid inverters, ranging from 3 kW to 6 kW, are designed to optimize energy efficiency by integrating solar power with battery storage systems.

EGT-6K-1P1M
ModelEGT-3K-1P1MEGT-3.6K-1P1MEGT-5K-1P1MEGT-6K-1P1M
Max DC Input Power (kW)3.94.77.59
Max DC Input Voltage550VDC550VDC600VDC600VDC
MPPT Operating Range70-50070-50070-55070-550
Max DC Input Current20202020
Max Short Circuit Current30303030
No of MPP Tracker1111
No. of String per MPP Tracker1112
Start-up Voltage (V)80VDC80VDC80VDC80VDC
Output (AC)
Rated Output Power (kW)33.656
Max Active Power (kW)3.33.965.56.6
Max Apparent Power (kVA)3.33.965.56.6
Rated Output Voltage / Range230VAC / 195.5 to 253 VAC230VAC / 195.5 to 253 VAC230VAC / 195.5 to 253 VAC230VAC / 195.5 to 253 VAC
Rated Grid Frequency / Range50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)
Operating PhaseSingleSingleSingleSingle
Rated AC Grid Output Current13.115.721.826.1
Max AC Output Current14.417.32428.7
Output Power Factor0.8 lag to 0.8 lead0.8 lag to 0.8 lead0.8 lag to 0.8 lead0.8 lag to 0.8 lead
THD Current<3%<3%<3%<3%
Efficiency
Max Efficiency97.50%97.50%97.50%97.50%
MPPT Efficiency>99%>99%>99%>99%
Protection
DC Reverse Polarity ProtectionYesYesYesYes
AC Short Circuit ProtectionYesYesYesYes
AC Output Overcurrent ProtectionYesYesYesYes
Output Overvoltage ProtectionYesYesYesYes
Insulation Resistance ProtectionYesYesYesYes
Ground Fault MonitoringYesYesYesYes
Anti-islanding ProtectionYesYesYesYes
Temperature ProtectionYesYesYesYes
Remote software uploadYesYesYesYes
Remote change of operating ParametersYesYesYesYes
Surge protection levelYesYesYesYes
General Data
Size (mm)280W x 310H x 184D280W x 310H x 184D330W x 323H x 190D330W x 323H x 190D
Weight (Kg)6.356.3588
Ingress ProtectionIP65IP65IP65IP65
Max. Operating Altitude without Derating2000m2000m2000m2000m
Grid Connection StandardIEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5IEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5IEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5IEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5
Operating Surrounding Humidity0-100%0-100%0-100%0-100%
Safety EMC/standardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Communication interfaceRS485/Wi-Fi/LANRS485/Wi-Fi/LANRS485/Wi-Fi/LANRS485/Wi-Fi/LAN
Permissible Altitude2000 m2000 m2000 m2000 m
Noise (dB)35353535
Ingress Protection (IP Rating)IP65IP65IP65IP65
Inverter topologyTransformerlessTransformerlessTransformerlessTransformerless
Overvoltage CategoryOVC II (DC) / OVC III (AC)OVC II (DC) / OVC III (AC)OVC II (DC) / OVC III (AC)OVC II (DC) / OVC III (AC)
Type of CoolingNatural CoolingNatural CoolingNatural CoolingNatural Cooling
Features
DisplayLCD16O2LCD16O2LCD16O2LCD16O2
InterfaceRS48S/Wi-Fi/LANRS48S/Wi-Fi/LANRS48S/Wi-Fi/LANRS48S/Wi-Fi/LAN

Product Features

  • Max. Efficiency 97.5%
  • Low Startup DC voltage
  • Max. DC overloading 30%
  • Wide AC voltage range
  • Type-II SPD Enabled AC and DC Side
  • Eastman Solar App for Remote Monitoring 24x7
  • Built in zero export function
  • IP 65 Enclosure

Datasheet

Download

EGT-5K-1P1M

Low Voltage Efficient Hybrid Inverter Solution

Eastman Low voltage hybrid inverters, ranging from 3 kW to 6 kW, are designed to optimize energy efficiency by integrating solar power with battery storage systems.

EGT-6K-1P1M
ModelEGT-3K-1P1MEGT-3.6K-1P1MEGT-5K-1P1MEGT-6K-1P1M
Max DC Input Power (kW)3.94.77.59
Max DC Input Voltage550VDC550VDC600VDC600VDC
MPPT Operating Range70-50070-50070-55070-550
Max DC Input Current20202020
Max Short Circuit Current30303030
No of MPP Tracker1111
No. of String per MPP Tracker1112
Start-up Voltage (V)80VDC80VDC80VDC80VDC
Output (AC)
Rated Output Power (kW)33.656
Max Active Power (kW)3.33.965.56.6
Max Apparent Power (kVA)3.33.965.56.6
Rated Output Voltage / Range230VAC / 195.5 to 253 VAC230VAC / 195.5 to 253 VAC230VAC / 195.5 to 253 VAC230VAC / 195.5 to 253 VAC
Rated Grid Frequency / Range50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)
Operating PhaseSingleSingleSingleSingle
Rated AC Grid Output Current13.115.721.826.1
Max AC Output Current14.417.32428.7
Output Power Factor0.8 lag to 0.8 lead0.8 lag to 0.8 lead0.8 lag to 0.8 lead0.8 lag to 0.8 lead
THD Current<3%<3%<3%<3%
Efficiency
Max Efficiency97.50%97.50%97.50%97.50%
MPPT Efficiency>99%>99%>99%>99%
Protection
DC Reverse Polarity ProtectionYesYesYesYes
AC Short Circuit ProtectionYesYesYesYes
AC Output Overcurrent ProtectionYesYesYesYes
Output Overvoltage ProtectionYesYesYesYes
Insulation Resistance ProtectionYesYesYesYes
Ground Fault MonitoringYesYesYesYes
Anti-islanding ProtectionYesYesYesYes
Temperature ProtectionYesYesYesYes
Remote software uploadYesYesYesYes
Remote change of operating ParametersYesYesYesYes
Surge protection levelYesYesYesYes
General Data
Size (mm)280W x 310H x 184D280W x 310H x 184D330W x 323H x 190D330W x 323H x 190D
Weight (Kg)6.356.3588
Ingress ProtectionIP65IP65IP65IP65
Max. Operating Altitude without Derating2000m2000m2000m2000m
Grid Connection StandardIEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5IEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5IEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5IEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5
Operating Surrounding Humidity0-100%0-100%0-100%0-100%
Safety EMC/standardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Communication interfaceRS485/Wi-Fi/LANRS485/Wi-Fi/LANRS485/Wi-Fi/LANRS485/Wi-Fi/LAN
Permissible Altitude2000 m2000 m2000 m2000 m
Noise (dB)35353535
Ingress Protection (IP Rating)IP65IP65IP65IP65
Inverter topologyTransformerlessTransformerlessTransformerlessTransformerless
Overvoltage CategoryOVC II (DC) / OVC III (AC)OVC II (DC) / OVC III (AC)OVC II (DC) / OVC III (AC)OVC II (DC) / OVC III (AC)
Type of CoolingNatural CoolingNatural CoolingNatural CoolingNatural Cooling
Features
DisplayLCD16O2LCD16O2LCD16O2LCD16O2
InterfaceRS48S/Wi-Fi/LANRS48S/Wi-Fi/LANRS48S/Wi-Fi/LANRS48S/Wi-Fi/LAN

Product Features

  • Max. Efficiency 97.5%
  • Low Startup DC voltage
  • Max. DC overloading 30%
  • Wide AC voltage range
  • Type-II SPD Enabled AC and DC Side
  • Eastman Solar App for Remote Monitoring 24x7
  • Built in zero export function
  • IP 65 Enclosure

Datasheet

Download

EGT-6K-1P1M

Low Voltage Efficient Hybrid Inverter Solution

Eastman Low voltage hybrid inverters, ranging from 3 kW to 6 kW, are designed to optimize energy efficiency by integrating solar power with battery storage systems.

EGT-6K-1P1M
ModelEGT-3K-1P1MEGT-3.6K-1P1MEGT-5K-1P1MEGT-6K-1P1M
Max DC Input Power (kW)3.94.77.59
Max DC Input Voltage550VDC550VDC600VDC600VDC
MPPT Operating Range70-50070-50070-55070-550
Max DC Input Current20202020
Max Short Circuit Current30303030
No of MPP Tracker1111
No. of String per MPP Tracker1112
Start-up Voltage (V)80VDC80VDC80VDC80VDC
Output (AC)
Rated Output Power (kW)33.656
Max Active Power (kW)3.33.965.56.6
Max Apparent Power (kVA)3.33.965.56.6
Rated Output Voltage / Range230VAC / 195.5 to 253 VAC230VAC / 195.5 to 253 VAC230VAC / 195.5 to 253 VAC230VAC / 195.5 to 253 VAC
Rated Grid Frequency / Range50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)50Hz (45Hz-55Hz) / 60Hz (55Hz-65Hz)
Operating PhaseSingleSingleSingleSingle
Rated AC Grid Output Current13.115.721.826.1
Max AC Output Current14.417.32428.7
Output Power Factor0.8 lag to 0.8 lead0.8 lag to 0.8 lead0.8 lag to 0.8 lead0.8 lag to 0.8 lead
THD Current<3%<3%<3%<3%
Efficiency
Max Efficiency97.50%97.50%97.50%97.50%
MPPT Efficiency>99%>99%>99%>99%
Protection
DC Reverse Polarity ProtectionYesYesYesYes
AC Short Circuit ProtectionYesYesYesYes
AC Output Overcurrent ProtectionYesYesYesYes
Output Overvoltage ProtectionYesYesYesYes
Insulation Resistance ProtectionYesYesYesYes
Ground Fault MonitoringYesYesYesYes
Anti-islanding ProtectionYesYesYesYes
Temperature ProtectionYesYesYesYes
Remote software uploadYesYesYesYes
Remote change of operating ParametersYesYesYesYes
Surge protection levelYesYesYesYes
General Data
Size (mm)280W x 310H x 184D280W x 310H x 184D330W x 323H x 190D330W x 323H x 190D
Weight (Kg)6.356.3588
Ingress ProtectionIP65IP65IP65IP65
Max. Operating Altitude without Derating2000m2000m2000m2000m
Grid Connection StandardIEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5IEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5IEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5IEC 61727,IEC 62116,CEI 0-21, EN5O549, NRSO97, RD 140, UNE217OO2, G98, G99, VDE-AR-N41O5
Operating Surrounding Humidity0-100%0-100%0-100%0-100%
Safety EMC/standardIEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
Communication interfaceRS485/Wi-Fi/LANRS485/Wi-Fi/LANRS485/Wi-Fi/LANRS485/Wi-Fi/LAN
Permissible Altitude2000 m2000 m2000 m2000 m
Noise (dB)35353535
Ingress Protection (IP Rating)IP65IP65IP65IP65
Inverter topologyTransformerlessTransformerlessTransformerlessTransformerless
Overvoltage CategoryOVC II (DC) / OVC III (AC)OVC II (DC) / OVC III (AC)OVC II (DC) / OVC III (AC)OVC II (DC) / OVC III (AC)
Type of CoolingNatural CoolingNatural CoolingNatural CoolingNatural Cooling
Features
DisplayLCD16O2LCD16O2LCD16O2LCD16O2
InterfaceRS48S/Wi-Fi/LANRS48S/Wi-Fi/LANRS48S/Wi-Fi/LANRS48S/Wi-Fi/LAN

Product Features

  • Max. Efficiency 97.5%
  • Low Startup DC voltage
  • Max. DC overloading 30%
  • Wide AC voltage range
  • Type-II SPD Enabled AC and DC Side
  • Eastman Solar App for Remote Monitoring 24x7
  • Built in zero export function
  • IP 65 Enclosure

Datasheet

Download

Applications

Our grid-tie inverters are designed to seamlessly integrate with the electrical grid, providing an efficient and sustainable solution for a wide range of applications. These versatile systems are ideal for homes and businesses looking to reduce their reliance on traditional power sources while contributing to renewable energy efforts.

Solar Power

Electricity generation and consumption in areas without access to the main power grid.

Generator

Optimize generator efficiency by seamlessly integrating renewable energy sources.

External Battery Pack

Efficient utilization of renewable power sources in a portable and independent manner.

Home Appliances

Power home appliances, ensuring a sustainable and independent electricity supply.

Related Products

Explore our range of related products designed to complement your energy needs. From Inverters to Charge Controllers to Panels, we offer a comprehensive suite of products to enhance your power setup.

EGT-6K-1P1M

Single Phase Inverters

EGT-6K-1P1M
Single &amp; Three Phase Inverters for MEA

Single & Three Phase Inverters for MEA

Single &amp; Three Phase Inverters for MEA
ES5KWT-GT

Three Phase Inverters

ES5KWT-GT
EM-3000OG

Off Grid Inverter MEA

EM-3000OG
whatsapp-icon
Top
