Hybrid Inverter - HV 220V- Americas

Hybrid Inverter - HV 220V- Americas

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners. The power range is from 3.0kW to 9.6kW, compatible with high voltage (80-495V) batteries. Energy management is based on time-of-use and demand charge rate structures, significantly reduce the amount of energy purchased from public grid.

Thanks for the UPS function (switch time < 10ms), that it enables the crucial loads power on during outages. Additionally, under the backup operation mode, the inverter provides you up to 150% peak output overloading. The Eastman Split Phase series storage inverters meet the US safety regulations, integrated with Arc Fault Circuit Interrupter (AFCI) and Rapid Shutdown.

ES3KDHH

High Voltage Reliable Hybrid Inverter Solution

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners.

Description	ES3KDHH	ES3.6KDHH	ES4KDHH	ES4.6KDHH	ES5KDHH	ES5.5KDHH	ES6KDHH	ES7KDHH	ES7.6KDHH	ES8KDHH	ES8.6KDHH	ES9.6KDHH
Max Input Power(KW)	4.5	5.4	6	6.9	7.5	8.3	9	10.5	11.4	12	12.9	15
Max PV Voltage(V)	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Range(V)	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550
Full MPPT Range(V)	110-550	135-550	150-550	170-550	185-550	200-500	220-550	170-550	185-550	195-550	210-550	235-550
Rated Input Voltage(V)	360	360	360	360	360	360	360	360	360	360	360	360
Startup Voltage(V)	100	100	100	100	100	100	100	100	100	100	100	100
Max. Charge/ Discharge Power (KW)	4.5/4.5	5.4/5.4	6.0/6.0	6.9/6.9	7.5/7.5	8.3/8.3	9.0/9.0	10.5/10.3	11.4/10.3	11.5/10.3	11.5/10.3	11.5/10.3
Max. Continuous Current (A)	15	17.5	19.5	22.5	24.5	27	29	34	37	39	41.5	46.5
Max. Continuous Power (KVA)	3	3.6	4	4.6	5	5.5	6	7	7.6	8	8.6	9.6
Market	Americas

Features
Datasheet

Product Features

Maximum 1.5 time PV Oversize Capacity
Upto 3 MPPT Channels
Switch Time < 10ms
Maximum 6 Parallel Stacking
Support Generators
Supports Split-Phase (120/ 240V AC) Grid

Datasheet

Download

ES3.6KDHH

High Voltage Reliable Hybrid Inverter Solution

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners.

Description	ES3KDHH	ES3.6KDHH	ES4KDHH	ES4.6KDHH	ES5KDHH	ES5.5KDHH	ES6KDHH	ES7KDHH	ES7.6KDHH	ES8KDHH	ES8.6KDHH	ES9.6KDHH
Max Input Power(KW)	4.5	5.4	6	6.9	7.5	8.3	9	10.5	11.4	12	12.9	15
Max PV Voltage(V)	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Range(V)	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550
Full MPPT Range(V)	110-550	135-550	150-550	170-550	185-550	200-500	220-550	170-550	185-550	195-550	210-550	235-550
Rated Input Voltage(V)	360	360	360	360	360	360	360	360	360	360	360	360
Startup Voltage(V)	100	100	100	100	100	100	100	100	100	100	100	100
Max. Charge/ Discharge Power (KW)	4.5/4.5	5.4/5.4	6.0/6.0	6.9/6.9	7.5/7.5	8.3/8.3	9.0/9.0	10.5/10.3	11.4/10.3	11.5/10.3	11.5/10.3	11.5/10.3
Max. Continuous Current (A)	15	17.5	19.5	22.5	24.5	27	29	34	37	39	41.5	46.5
Max. Continuous Power (KVA)	3	3.6	4	4.6	5	5.5	6	7	7.6	8	8.6	9.6
Market	Americas

Features
Datasheet

Product Features

Maximum 1.5 time PV Oversize Capacity
Upto 3 MPPT Channels
Switch Time < 10ms
Maximum 6 Parallel Stacking
Support Generators
Supports Split-Phase (120/ 240V AC) Grid

Datasheet

Download

ES4KDHH

High Voltage Reliable Hybrid Inverter Solution

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners.

Description	ES3KDHH	ES3.6KDHH	ES4KDHH	ES4.6KDHH	ES5KDHH	ES5.5KDHH	ES6KDHH	ES7KDHH	ES7.6KDHH	ES8KDHH	ES8.6KDHH	ES9.6KDHH
Max Input Power(KW)	4.5	5.4	6	6.9	7.5	8.3	9	10.5	11.4	12	12.9	15
Max PV Voltage(V)	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Range(V)	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550
Full MPPT Range(V)	110-550	135-550	150-550	170-550	185-550	200-500	220-550	170-550	185-550	195-550	210-550	235-550
Rated Input Voltage(V)	360	360	360	360	360	360	360	360	360	360	360	360
Startup Voltage(V)	100	100	100	100	100	100	100	100	100	100	100	100
Max. Charge/ Discharge Power (KW)	4.5/4.5	5.4/5.4	6.0/6.0	6.9/6.9	7.5/7.5	8.3/8.3	9.0/9.0	10.5/10.3	11.4/10.3	11.5/10.3	11.5/10.3	11.5/10.3
Max. Continuous Current (A)	15	17.5	19.5	22.5	24.5	27	29	34	37	39	41.5	46.5
Max. Continuous Power (KVA)	3	3.6	4	4.6	5	5.5	6	7	7.6	8	8.6	9.6
Market	Americas

Features
Datasheet

Product Features

Maximum 1.5 time PV Oversize Capacity
Upto 3 MPPT Channels
Switch Time < 10ms
Maximum 6 Parallel Stacking
Support Generators
Supports Split-Phase (120/ 240V AC) Grid

Datasheet

Download

ES4.6KDHH

High Voltage Reliable Hybrid Inverter Solution

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners.

Description	ES3KDHH	ES3.6KDHH	ES4KDHH	ES4.6KDHH	ES5KDHH	ES5.5KDHH	ES6KDHH	ES7KDHH	ES7.6KDHH	ES8KDHH	ES8.6KDHH	ES9.6KDHH
Max Input Power(KW)	4.5	5.4	6	6.9	7.5	8.3	9	10.5	11.4	12	12.9	15
Max PV Voltage(V)	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Range(V)	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550
Full MPPT Range(V)	110-550	135-550	150-550	170-550	185-550	200-500	220-550	170-550	185-550	195-550	210-550	235-550
Rated Input Voltage(V)	360	360	360	360	360	360	360	360	360	360	360	360
Startup Voltage(V)	100	100	100	100	100	100	100	100	100	100	100	100
Max. Charge/ Discharge Power (KW)	4.5/4.5	5.4/5.4	6.0/6.0	6.9/6.9	7.5/7.5	8.3/8.3	9.0/9.0	10.5/10.3	11.4/10.3	11.5/10.3	11.5/10.3	11.5/10.3
Max. Continuous Current (A)	15	17.5	19.5	22.5	24.5	27	29	34	37	39	41.5	46.5
Max. Continuous Power (KVA)	3	3.6	4	4.6	5	5.5	6	7	7.6	8	8.6	9.6
Market	Americas

Features
Datasheet

Product Features

Maximum 1.5 time PV Oversize Capacity
Upto 3 MPPT Channels
Switch Time < 10ms
Maximum 6 Parallel Stacking
Support Generators
Supports Split-Phase (120/ 240V AC) Grid

Datasheet

Download

ES5KDHH

High Voltage Reliable Hybrid Inverter Solution

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners.

Description	ES3KDHH	ES3.6KDHH	ES4KDHH	ES4.6KDHH	ES5KDHH	ES5.5KDHH	ES6KDHH	ES7KDHH	ES7.6KDHH	ES8KDHH	ES8.6KDHH	ES9.6KDHH
Max Input Power(KW)	4.5	5.4	6	6.9	7.5	8.3	9	10.5	11.4	12	12.9	15
Max PV Voltage(V)	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Range(V)	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550
Full MPPT Range(V)	110-550	135-550	150-550	170-550	185-550	200-500	220-550	170-550	185-550	195-550	210-550	235-550
Rated Input Voltage(V)	360	360	360	360	360	360	360	360	360	360	360	360
Startup Voltage(V)	100	100	100	100	100	100	100	100	100	100	100	100
Max. Charge/ Discharge Power (KW)	4.5/4.5	5.4/5.4	6.0/6.0	6.9/6.9	7.5/7.5	8.3/8.3	9.0/9.0	10.5/10.3	11.4/10.3	11.5/10.3	11.5/10.3	11.5/10.3
Max. Continuous Current (A)	15	17.5	19.5	22.5	24.5	27	29	34	37	39	41.5	46.5
Max. Continuous Power (KVA)	3	3.6	4	4.6	5	5.5	6	7	7.6	8	8.6	9.6
Market	Americas

Features
Datasheet

Product Features

Maximum 1.5 time PV Oversize Capacity
Upto 3 MPPT Channels
Switch Time < 10ms
Maximum 6 Parallel Stacking
Support Generators
Supports Split-Phase (120/ 240V AC) Grid

Datasheet

Download

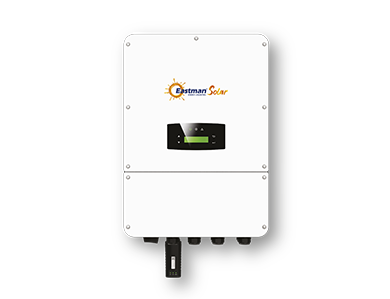

ES5.5KDHH

High Voltage Reliable Hybrid Inverter Solution

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners.

Description	ES3KDHH	ES3.6KDHH	ES4KDHH	ES4.6KDHH	ES5KDHH	ES5.5KDHH	ES6KDHH	ES7KDHH	ES7.6KDHH	ES8KDHH	ES8.6KDHH	ES9.6KDHH
Max Input Power(KW)	4.5	5.4	6	6.9	7.5	8.3	9	10.5	11.4	12	12.9	15
Max PV Voltage(V)	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Range(V)	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550
Full MPPT Range(V)	110-550	135-550	150-550	170-550	185-550	200-500	220-550	170-550	185-550	195-550	210-550	235-550
Rated Input Voltage(V)	360	360	360	360	360	360	360	360	360	360	360	360
Startup Voltage(V)	100	100	100	100	100	100	100	100	100	100	100	100
Max. Charge/ Discharge Power (KW)	4.5/4.5	5.4/5.4	6.0/6.0	6.9/6.9	7.5/7.5	8.3/8.3	9.0/9.0	10.5/10.3	11.4/10.3	11.5/10.3	11.5/10.3	11.5/10.3
Max. Continuous Current (A)	15	17.5	19.5	22.5	24.5	27	29	34	37	39	41.5	46.5
Max. Continuous Power (KVA)	3	3.6	4	4.6	5	5.5	6	7	7.6	8	8.6	9.6
Market	Americas

Features
Datasheet

Product Features

Maximum 1.5 time PV Oversize Capacity
Upto 3 MPPT Channels
Switch Time < 10ms
Maximum 6 Parallel Stacking
Support Generators
Supports Split-Phase (120/ 240V AC) Grid

Datasheet

Download

ES6KDHH

High Voltage Reliable Hybrid Inverter Solution

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners.

Description	ES3KDHH	ES3.6KDHH	ES4KDHH	ES4.6KDHH	ES5KDHH	ES5.5KDHH	ES6KDHH	ES7KDHH	ES7.6KDHH	ES8KDHH	ES8.6KDHH	ES9.6KDHH
Max Input Power(KW)	4.5	5.4	6	6.9	7.5	8.3	9	10.5	11.4	12	12.9	15
Max PV Voltage(V)	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Range(V)	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550
Full MPPT Range(V)	110-550	135-550	150-550	170-550	185-550	200-500	220-550	170-550	185-550	195-550	210-550	235-550
Rated Input Voltage(V)	360	360	360	360	360	360	360	360	360	360	360	360
Startup Voltage(V)	100	100	100	100	100	100	100	100	100	100	100	100
Max. Charge/ Discharge Power (KW)	4.5/4.5	5.4/5.4	6.0/6.0	6.9/6.9	7.5/7.5	8.3/8.3	9.0/9.0	10.5/10.3	11.4/10.3	11.5/10.3	11.5/10.3	11.5/10.3
Max. Continuous Current (A)	15	17.5	19.5	22.5	24.5	27	29	34	37	39	41.5	46.5
Max. Continuous Power (KVA)	3	3.6	4	4.6	5	5.5	6	7	7.6	8	8.6	9.6
Market	Americas

Features
Datasheet

Product Features

Maximum 1.5 time PV Oversize Capacity
Upto 3 MPPT Channels
Switch Time < 10ms
Maximum 6 Parallel Stacking
Support Generators
Supports Split-Phase (120/ 240V AC) Grid

Datasheet

Download

ES7KDHH

High Voltage Reliable Hybrid Inverter Solution

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners.

Description	ES3KDHH	ES3.6KDHH	ES4KDHH	ES4.6KDHH	ES5KDHH	ES5.5KDHH	ES6KDHH	ES7KDHH	ES7.6KDHH	ES8KDHH	ES8.6KDHH	ES9.6KDHH
Max Input Power(KW)	4.5	5.4	6	6.9	7.5	8.3	9	10.5	11.4	12	12.9	15
Max PV Voltage(V)	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Range(V)	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550
Full MPPT Range(V)	110-550	135-550	150-550	170-550	185-550	200-500	220-550	170-550	185-550	195-550	210-550	235-550
Rated Input Voltage(V)	360	360	360	360	360	360	360	360	360	360	360	360
Startup Voltage(V)	100	100	100	100	100	100	100	100	100	100	100	100
Max. Charge/ Discharge Power (KW)	4.5/4.5	5.4/5.4	6.0/6.0	6.9/6.9	7.5/7.5	8.3/8.3	9.0/9.0	10.5/10.3	11.4/10.3	11.5/10.3	11.5/10.3	11.5/10.3
Max. Continuous Current (A)	15	17.5	19.5	22.5	24.5	27	29	34	37	39	41.5	46.5
Max. Continuous Power (KVA)	3	3.6	4	4.6	5	5.5	6	7	7.6	8	8.6	9.6
Market	Americas

Features
Datasheet

Product Features

Maximum 1.5 time PV Oversize Capacity
Upto 3 MPPT Channels
Switch Time < 10ms
Maximum 6 Parallel Stacking
Support Generators
Supports Split-Phase (120/ 240V AC) Grid

Datasheet

Download

ES7.6KDHH

High Voltage Reliable Hybrid Inverter Solution

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners.

Description	ES3KDHH	ES3.6KDHH	ES4KDHH	ES4.6KDHH	ES5KDHH	ES5.5KDHH	ES6KDHH	ES7KDHH	ES7.6KDHH	ES8KDHH	ES8.6KDHH	ES9.6KDHH
Max Input Power(KW)	4.5	5.4	6	6.9	7.5	8.3	9	10.5	11.4	12	12.9	15
Max PV Voltage(V)	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Range(V)	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550
Full MPPT Range(V)	110-550	135-550	150-550	170-550	185-550	200-500	220-550	170-550	185-550	195-550	210-550	235-550
Rated Input Voltage(V)	360	360	360	360	360	360	360	360	360	360	360	360
Startup Voltage(V)	100	100	100	100	100	100	100	100	100	100	100	100
Max. Charge/ Discharge Power (KW)	4.5/4.5	5.4/5.4	6.0/6.0	6.9/6.9	7.5/7.5	8.3/8.3	9.0/9.0	10.5/10.3	11.4/10.3	11.5/10.3	11.5/10.3	11.5/10.3
Max. Continuous Current (A)	15	17.5	19.5	22.5	24.5	27	29	34	37	39	41.5	46.5
Max. Continuous Power (KVA)	3	3.6	4	4.6	5	5.5	6	7	7.6	8	8.6	9.6
Market	Americas

Features
Datasheet

Product Features

Maximum 1.5 time PV Oversize Capacity
Upto 3 MPPT Channels
Switch Time < 10ms
Maximum 6 Parallel Stacking
Support Generators
Supports Split-Phase (120/ 240V AC) Grid

Datasheet

Download

ES8KDHH

High Voltage Reliable Hybrid Inverter Solution

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners.

Description	ES3KDHH	ES3.6KDHH	ES4KDHH	ES4.6KDHH	ES5KDHH	ES5.5KDHH	ES6KDHH	ES7KDHH	ES7.6KDHH	ES8KDHH	ES8.6KDHH	ES9.6KDHH
Max Input Power(KW)	4.5	5.4	6	6.9	7.5	8.3	9	10.5	11.4	12	12.9	15
Max PV Voltage(V)	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Range(V)	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550
Full MPPT Range(V)	110-550	135-550	150-550	170-550	185-550	200-500	220-550	170-550	185-550	195-550	210-550	235-550
Rated Input Voltage(V)	360	360	360	360	360	360	360	360	360	360	360	360
Startup Voltage(V)	100	100	100	100	100	100	100	100	100	100	100	100
Max. Charge/ Discharge Power (KW)	4.5/4.5	5.4/5.4	6.0/6.0	6.9/6.9	7.5/7.5	8.3/8.3	9.0/9.0	10.5/10.3	11.4/10.3	11.5/10.3	11.5/10.3	11.5/10.3
Max. Continuous Current (A)	15	17.5	19.5	22.5	24.5	27	29	34	37	39	41.5	46.5
Max. Continuous Power (KVA)	3	3.6	4	4.6	5	5.5	6	7	7.6	8	8.6	9.6
Market	Americas

Features
Datasheet

Product Features

Maximum 1.5 time PV Oversize Capacity
Upto 3 MPPT Channels
Switch Time < 10ms
Maximum 6 Parallel Stacking
Support Generators
Supports Split-Phase (120/ 240V AC) Grid

Datasheet

Download

ES8.6KDHH

High Voltage Reliable Hybrid Inverter Solution

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners.

Description	ES3KDHH	ES3.6KDHH	ES4KDHH	ES4.6KDHH	ES5KDHH	ES5.5KDHH	ES6KDHH	ES7KDHH	ES7.6KDHH	ES8KDHH	ES8.6KDHH	ES9.6KDHH
Max Input Power(KW)	4.5	5.4	6	6.9	7.5	8.3	9	10.5	11.4	12	12.9	15
Max PV Voltage(V)	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Range(V)	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550
Full MPPT Range(V)	110-550	135-550	150-550	170-550	185-550	200-500	220-550	170-550	185-550	195-550	210-550	235-550
Rated Input Voltage(V)	360	360	360	360	360	360	360	360	360	360	360	360
Startup Voltage(V)	100	100	100	100	100	100	100	100	100	100	100	100
Max. Charge/ Discharge Power (KW)	4.5/4.5	5.4/5.4	6.0/6.0	6.9/6.9	7.5/7.5	8.3/8.3	9.0/9.0	10.5/10.3	11.4/10.3	11.5/10.3	11.5/10.3	11.5/10.3
Max. Continuous Current (A)	15	17.5	19.5	22.5	24.5	27	29	34	37	39	41.5	46.5
Max. Continuous Power (KVA)	3	3.6	4	4.6	5	5.5	6	7	7.6	8	8.6	9.6
Market	Americas

Features
Datasheet

Product Features

Maximum 1.5 time PV Oversize Capacity
Upto 3 MPPT Channels
Switch Time < 10ms
Maximum 6 Parallel Stacking
Support Generators
Supports Split-Phase (120/ 240V AC) Grid

Datasheet

Download

ES9.6KDHH

High Voltage Reliable Hybrid Inverter Solution

The Eastman Split Phase series storage inverters are designed to increase energy independence for homeowners.

Description	ES3KDHH	ES3.6KDHH	ES4KDHH	ES4.6KDHH	ES5KDHH	ES5.5KDHH	ES6KDHH	ES7KDHH	ES7.6KDHH	ES8KDHH	ES8.6KDHH	ES9.6KDHH
Max Input Power(KW)	4.5	5.4	6	6.9	7.5	8.3	9	10.5	11.4	12	12.9	15
Max PV Voltage(V)	600	600	600	600	600	600	600	600	600	600	600	600
MPPT Range(V)	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550	80-550
Full MPPT Range(V)	110-550	135-550	150-550	170-550	185-550	200-500	220-550	170-550	185-550	195-550	210-550	235-550
Rated Input Voltage(V)	360	360	360	360	360	360	360	360	360	360	360	360
Startup Voltage(V)	100	100	100	100	100	100	100	100	100	100	100	100
Max. Charge/ Discharge Power (KW)	4.5/4.5	5.4/5.4	6.0/6.0	6.9/6.9	7.5/7.5	8.3/8.3	9.0/9.0	10.5/10.3	11.4/10.3	11.5/10.3	11.5/10.3	11.5/10.3
Max. Continuous Current (A)	15	17.5	19.5	22.5	24.5	27	29	34	37	39	41.5	46.5
Max. Continuous Power (KVA)	3	3.6	4	4.6	5	5.5	6	7	7.6	8	8.6	9.6
Market	Americas

Features
Datasheet

Product Features

Maximum 1.5 time PV Oversize Capacity
Upto 3 MPPT Channels
Switch Time < 10ms
Maximum 6 Parallel Stacking
Support Generators
Supports Split-Phase (120/ 240V AC) Grid

Datasheet

Download

Applications

Experience efficiency and resilience in a single solution with our cutting-edge hybrid inverters, seamlessly blending solar and grid power for reliable, sustainable performance.

Solar Power

Electricity generation and consumption in areas without access to the main power grid.

Generator

Optimize generator efficiency by seamlessly integrating renewable energy sources.

External Battery Pack

Efficient utilization of renewable power sources in a portable and independent manner.

Home Appliances

Power home appliances, ensuring a sustainable and independent electricity supply.

Hybrid Inverter - HV 220V- Americas

Available Models

ES3KDHH

High Voltage Reliable Hybrid Inverter Solution

Product Features

Datasheet

ES3.6KDHH

High Voltage Reliable Hybrid Inverter Solution

Product Features

Datasheet

ES4KDHH

High Voltage Reliable Hybrid Inverter Solution

Product Features

Datasheet

ES4.6KDHH

High Voltage Reliable Hybrid Inverter Solution

Product Features

Datasheet

ES5KDHH

High Voltage Reliable Hybrid Inverter Solution

Product Features

Datasheet

ES5.5KDHH

High Voltage Reliable Hybrid Inverter Solution

Product Features

Datasheet

ES6KDHH

High Voltage Reliable Hybrid Inverter Solution

Product Features

Datasheet

ES7KDHH

High Voltage Reliable Hybrid Inverter Solution

Product Features

Datasheet

ES7.6KDHH

High Voltage Reliable Hybrid Inverter Solution

Product Features

Datasheet

ES8KDHH

High Voltage Reliable Hybrid Inverter Solution

Product Features

Datasheet

ES8.6KDHH

High Voltage Reliable Hybrid Inverter Solution

Product Features

Datasheet

ES9.6KDHH

High Voltage Reliable Hybrid Inverter Solution

Product Features

Datasheet

Applications

Solar Power

Generator

External Battery Pack

Home Appliances

Related Products

Three Phase Inverters

Single Phase Inverters

Split Phase Inverters

Hybrid Inverter - LV 120V- Americas
